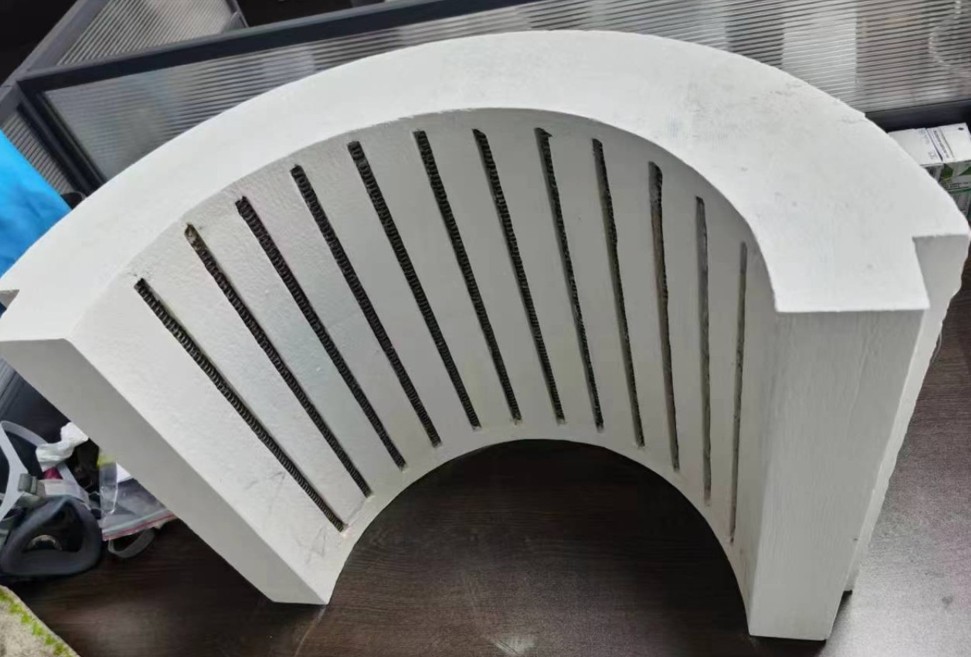

Ceramic fiber heating module with integrated resistance wire
Heating module overview

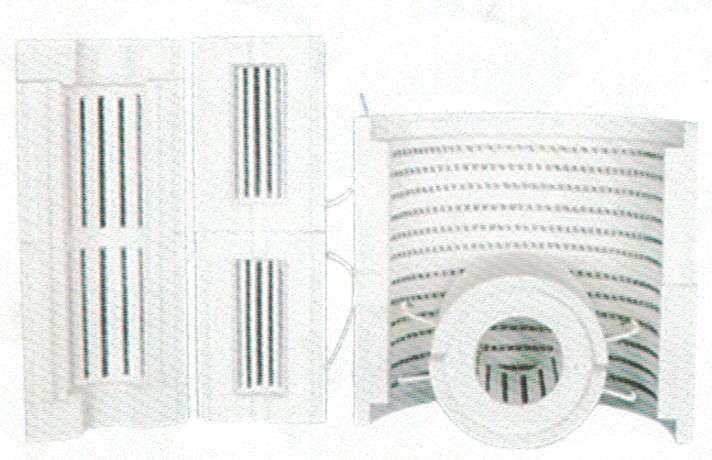

Flat heating module

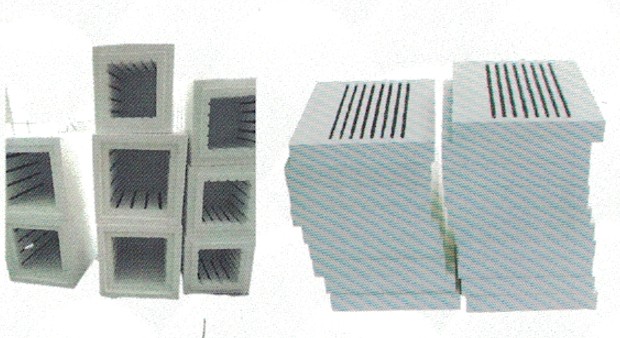

Semicircle heating module

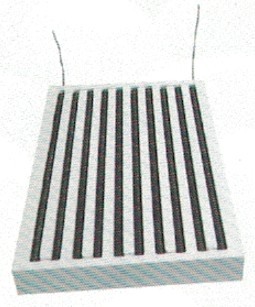

Round heating module

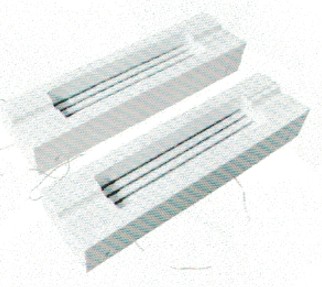

Tube heating module

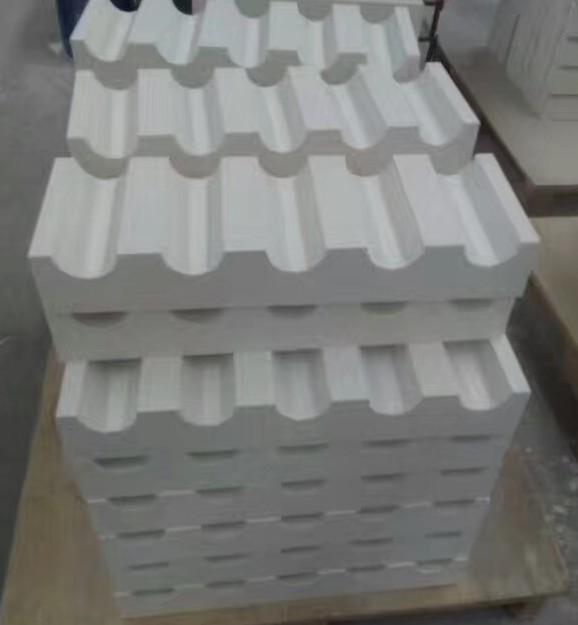

Heating module installation

Ceramic Fiber Heating Module with Integrated Resistance Wire

All-in-one heating solution combining electric heating elements with fiber insulation

⚡ Up to 1300°C 🔥 Fast Heating 💰 Energy Saving 🔧 Easy Install

Ceramic Fiber Heating Module is an innovative product that combines electric heating elements with fiber insulation in one integrated unit. The resistance wire heating components are combined with ceramic fiber insulation, providing flexible and rapid installation with fast heating response and cost-effective operation. Available in various shapes including flat panels, semicircles, rounds, and tubes to meet different furnace configurations. Custom sizes available per customer drawings.

📋 Quick Specifications

Max Service Temperature 1150°C / 1300°C
Available Models CS-E1150 / CS-E1300
Wire Structure Embedded / Hanging
Shapes Flat, Semi, Round, Tube
📧 Get Quote 📊 Product Data

Product Features & Applications

🔧 Product Features
  • Electric heating elements integrated with fiber insulation
  • Flexible and rapid installation
  • Fast heating response and temperature rise
  • Cost-effective and energy-saving operation
🏭 Product Applications
  • Various types of resistance heating furnaces
  • Small laboratory furnaces
  • Large industrial heat treatment furnaces
  • Pipe and duct heating applications

Product Data

Model Numbers

CS-E1150 CS-E1300

Max Service Temperature

1150°C – 1300°C

Depending on model selection

Wire Structure Types

Embedded Type Hanging Type

📐 Supply Specifications

All products in this series are customized according to customer drawings and specifications. Contact us with your specific requirements for a tailored solution.

Available Shapes

📋

Flat Panel

Standard flat heating surface for wall and ceiling applications

🌙

Semicircle

Half-round design for cylindrical furnace sections

⭕

Round / Circle

Complete circular design for round furnace tops or bottoms

🔵

Tube / Pipe

Tubular design for pipe heating and cylindrical chambers

Wire Structure Types

📥

Embedded Type

Resistance wire embedded within the ceramic fiber body for protected, uniform heating and longer service life

🪝

Hanging Type

Resistance wire suspended in grooves on the fiber surface for easy replacement and higher power density

Typical Applications

🔬

Laboratory Furnaces

🏭

Industrial Heat Treatment

🔩

Resistance Heating Furnaces

🔧

Pipe & Duct Heating

⚙️

Sintering Furnaces

🧪

Annealing Furnaces

Need Custom Heating Modules for Your Furnace?

Send us your drawings and specifications for a tailored heating solution with fast delivery.
